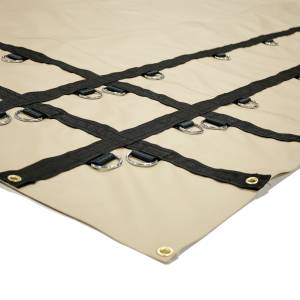

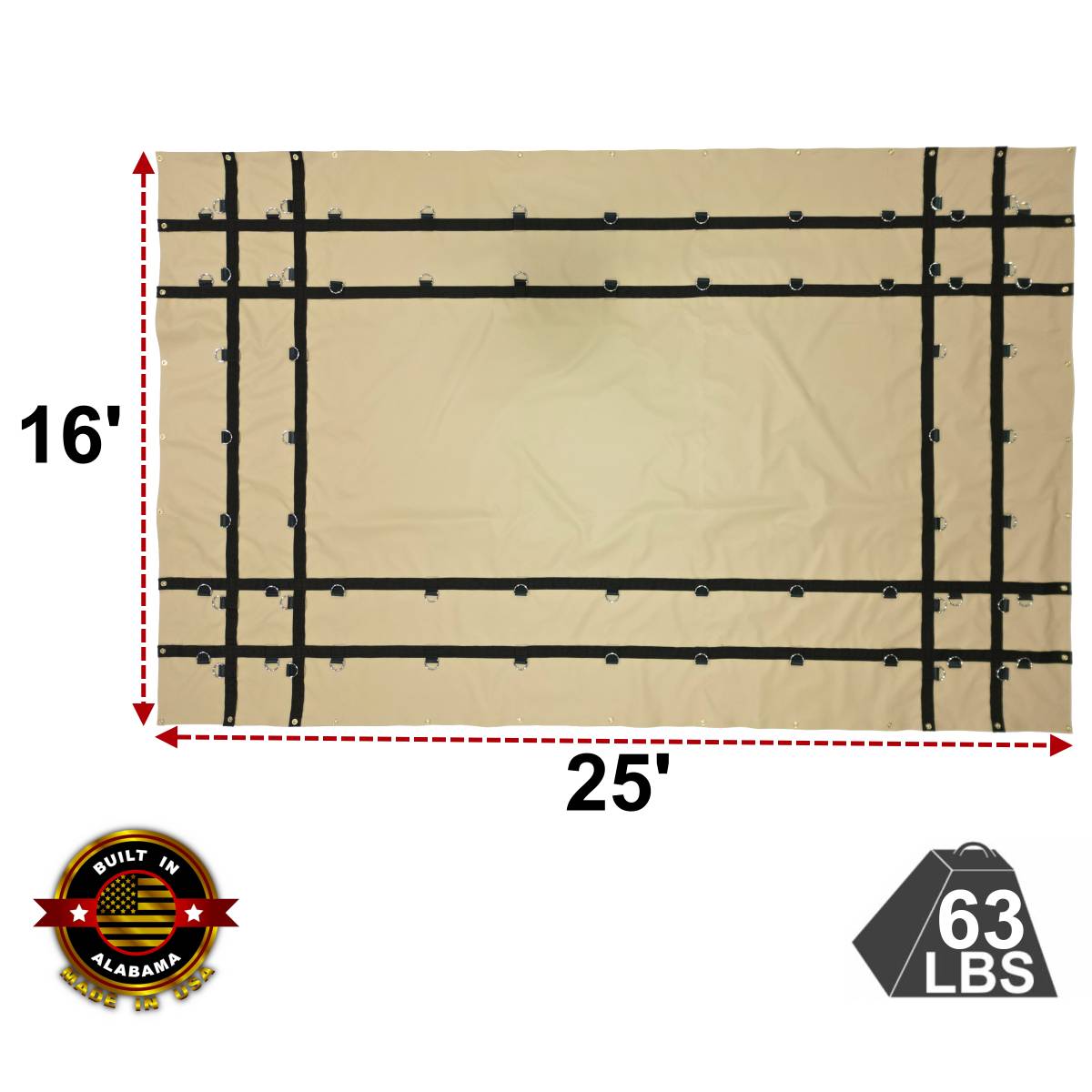

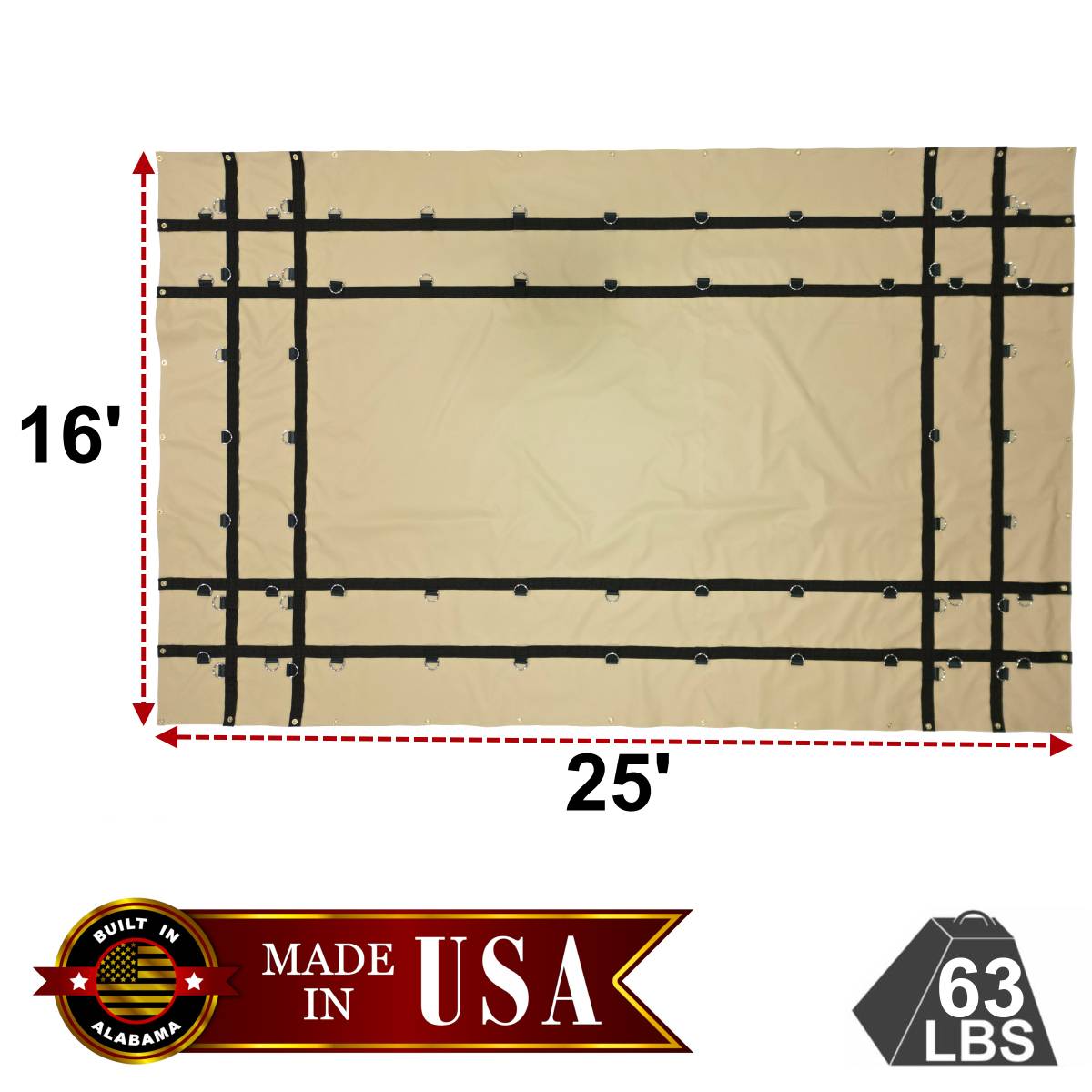

16' x 25' Vinyl Steel Tarp with D-Rings for Flatbed Truck and Trailer - 4' Drop

  • Select 18oz or 14oz vinyl coated fabric

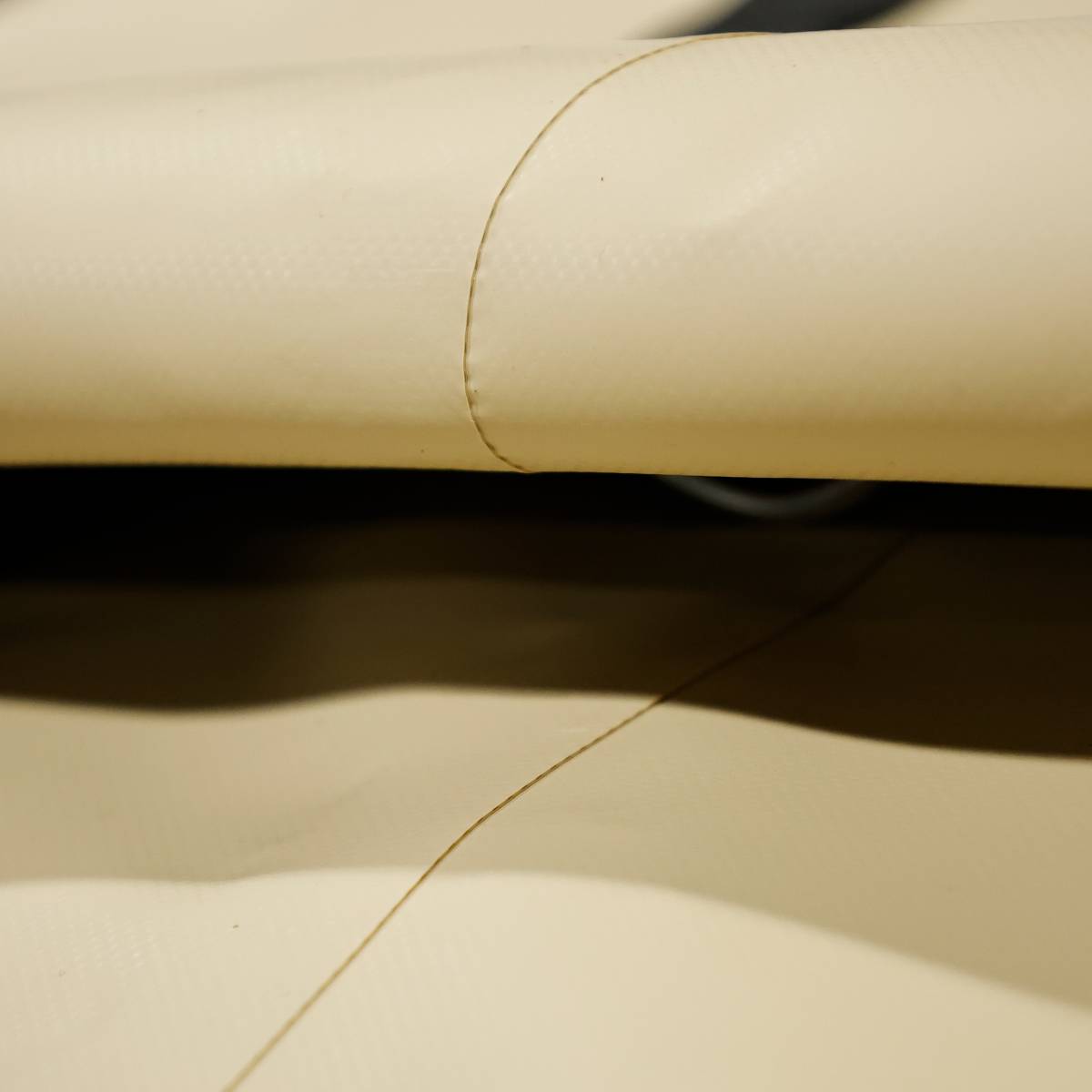

  • 2-Ply heat sealed perimeter hem

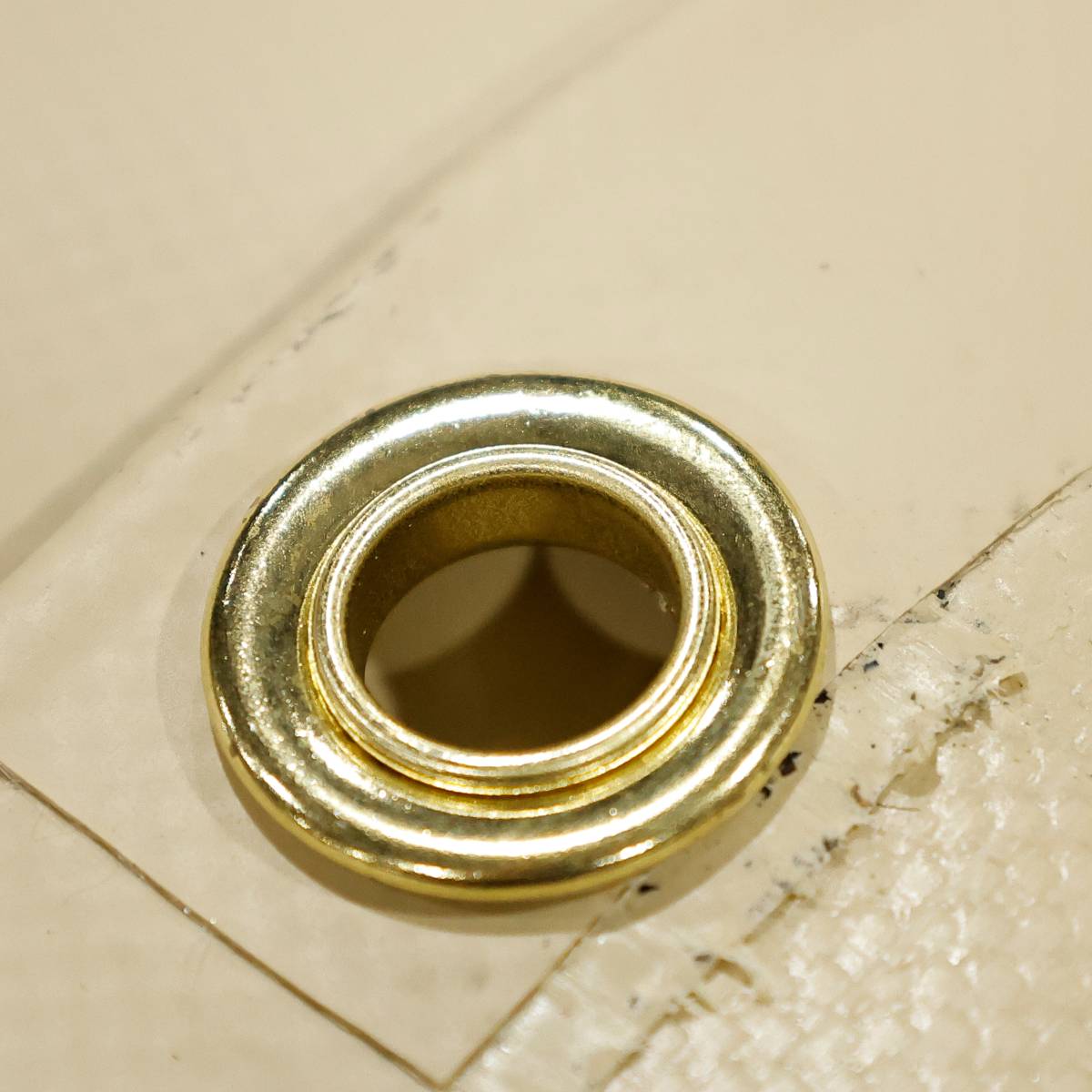

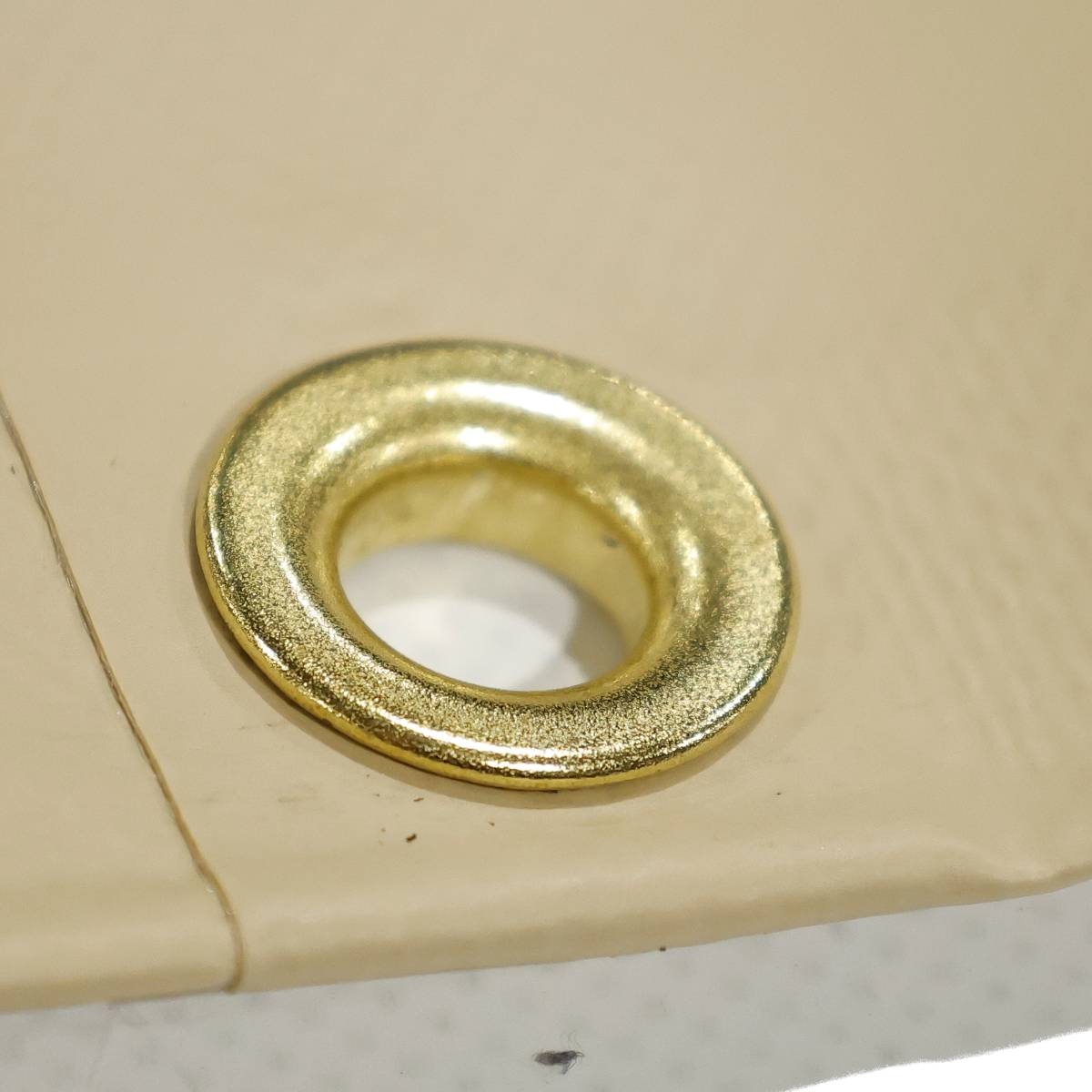

  • #2 brass rolled rimmed locking spur grommets

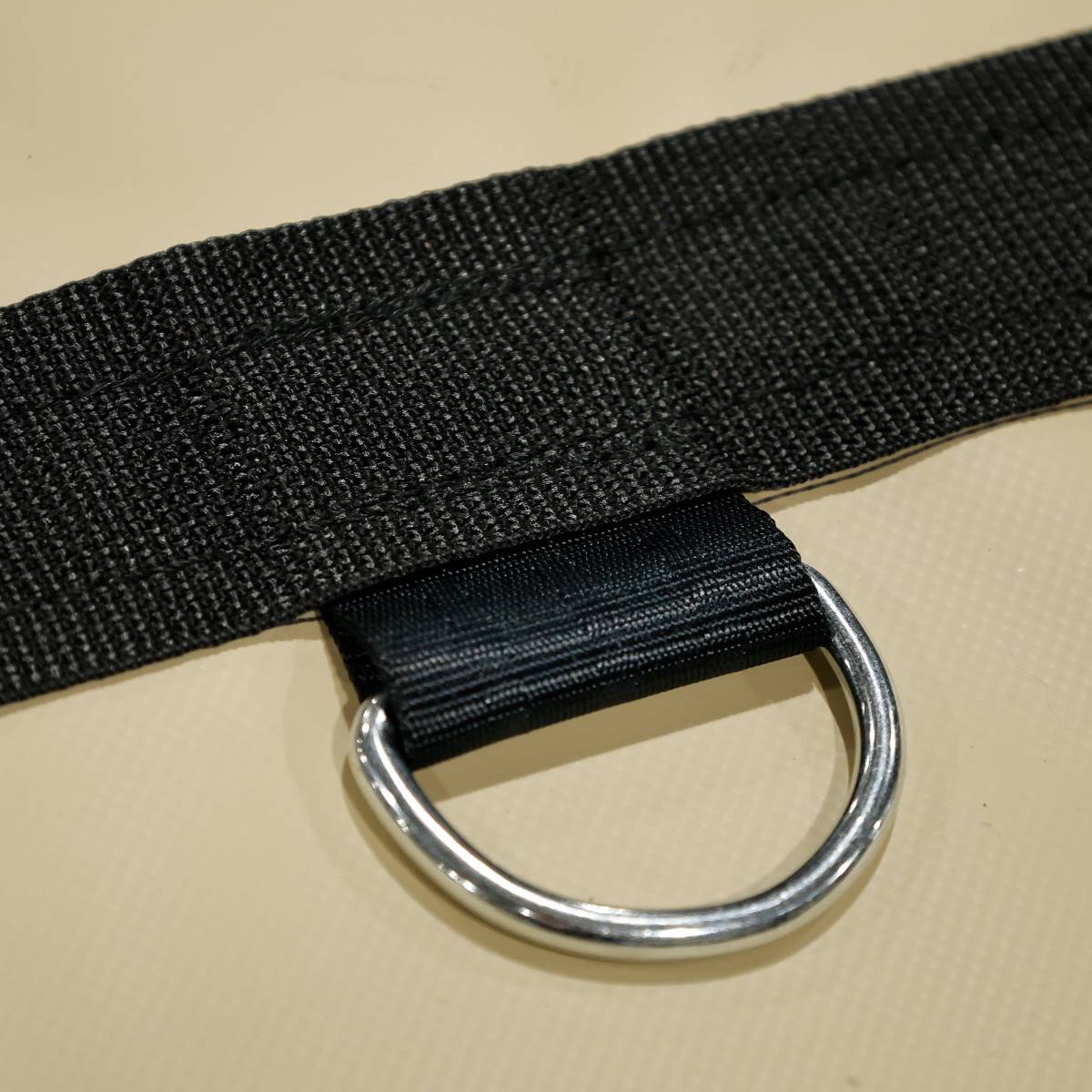

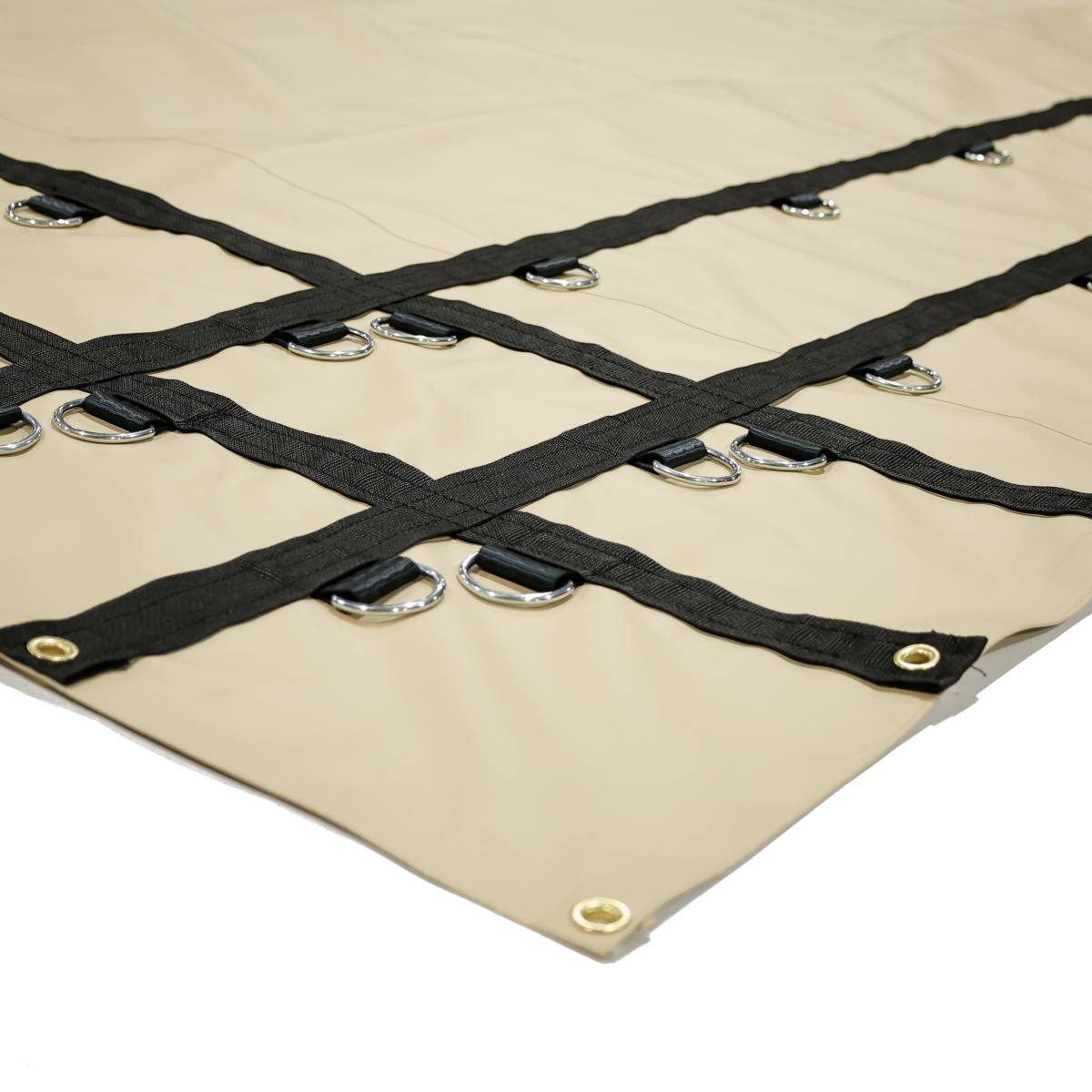

  • 8 Rows of webbing reinforced D-rings
  • Most buyers purchase a quantity of two
Availability: Made to Order - Ships in 5 business days
Pricing: $349.00

Customize Your Item

- -- Select Style & Color -- -
 * required

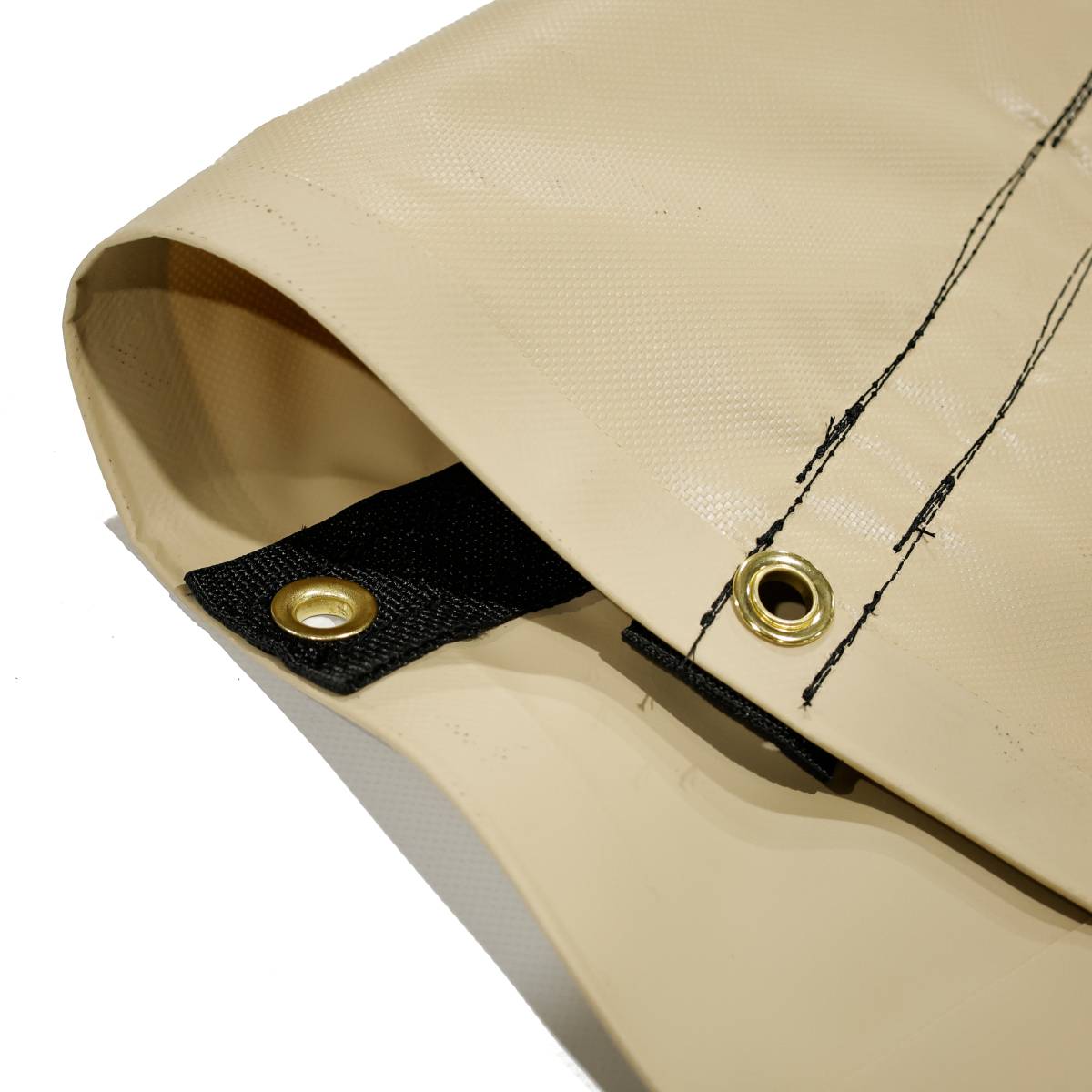

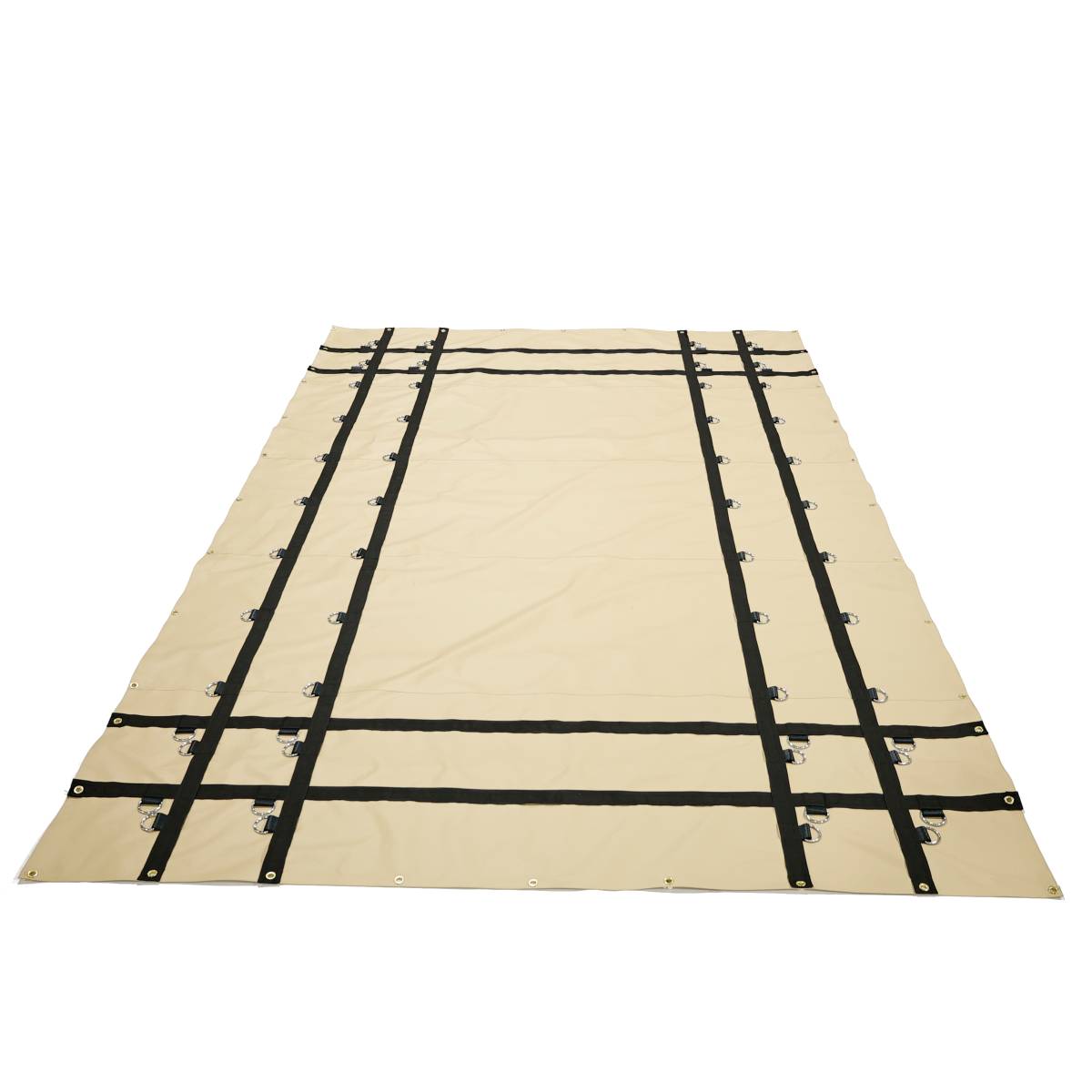

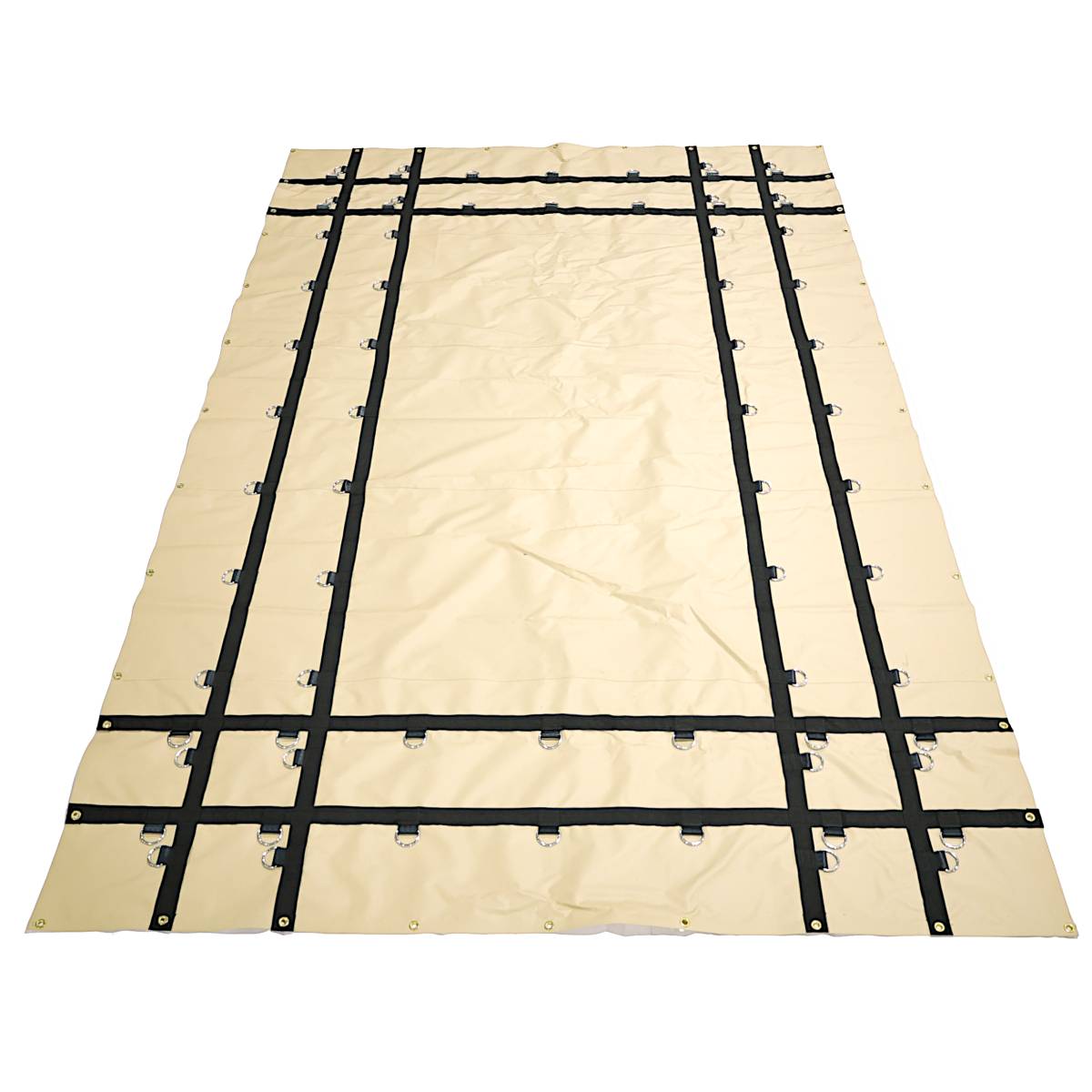

Steel tarps are commonly used to cover loads of sheet steel, steel tubing, pipe, plus steel or aluminum coils that will be hauled on a flatbed truck and trailer. A four-foot drop steel tarp is 16' wide which will cover loads up to 4' tall x 8' across. When ordered in the 25' length, typically two tarps will be purchased. Together the 2-tarp set will provide up to 40' of coverage. Steel tarps are loaded with 68 D-rings and 38 grommets for a total of 106 attachment points making them extremely versatile. Two rows of D-Rings are installed on both sides as well as both ends. These 1.5" dee rings are spaced at 30" apart and are inserted under a row of heavy duty polypro webbing. Each ring is triple stitched using our black 277 polyester thread. The outer perimeter of the tarp is folded over creating a two-ply thickness known as the hem. Brass rolled rimmed #2 grommets are machine punched about every 30" around this hem.

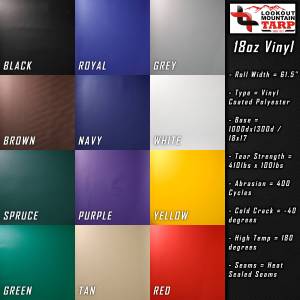

We offer this tarp constructed out of either 14-ounce or 18-ounce vinyl coated polyester fabric. Both fabrics are made by the same manufacturer and share the same 1000Dx1300D construction. The 18-ounce features increased tear strength plus a thicker vinyl coating with a 25% higher abrasion rating. This size tarp weighs 52 LBS in the 14oz or 61 LBS in the 18oz.

Lookout Mountain Tarp keeps this tarp pre-made and ready for immediate pick up or same business day shipping if the black 18oz option is selected. Orders for colors other than black or the 14oz fabric are made to order and will ship within 5 business days.


  • ST16-25
  • ST16-25
  • Lookout Mountain Tarp
  • Made to Order - Ships in 5 business days
  • New


Shipping Information

  • Item Requires Shipping
