20' x 27'6" Vinyl Lumber Tarp with Flap for Flatbed Truck and Trailer - 6' Drop
- Select 18oz or 14oz vinyl coated fabric
- 2-Ply heat sealed hem with #2 brass spur grommets
- 3 Rows of webbing reinforced D-rings on sides
- Includes 6'x8' flap on one end
- Most buyers order a quantity of 2 tarps
Colors or 14oz ship within 5 business days

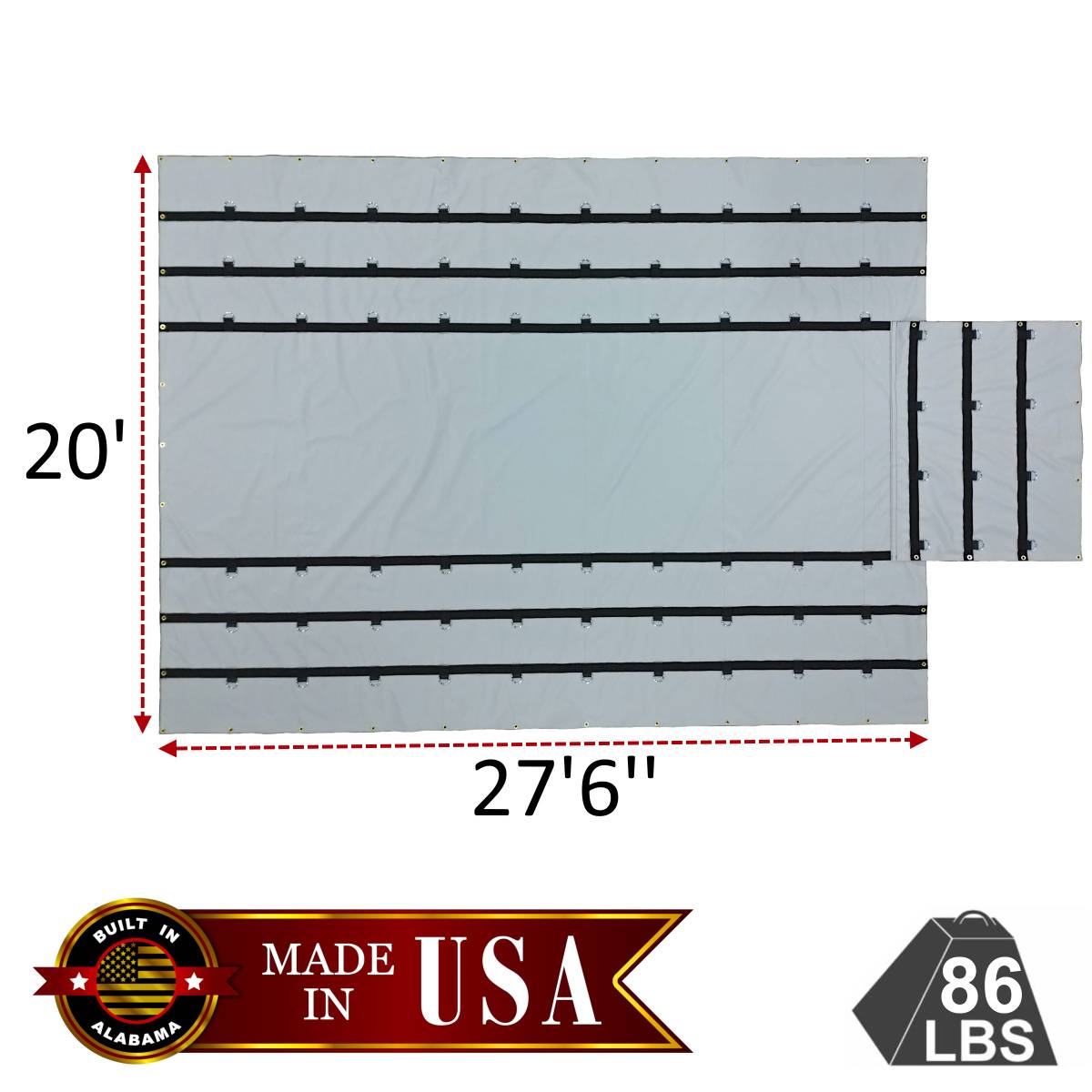

Lumber tarps are the most commonly used style of truck tarp for flatbed trailers. Their large size and ample attachment points can be used to tarp virtually any load. A six-foot drop lumber tarp is 20' wide which will cover loads up to 6' tall x 8' across. When ordered in the 27'6" length, typically two tarps are purchased that together provide up to 51' of coverage.
One end of the tarp includes a 6'x 8' flap which will drop down the front or rear of the load to create the boxed shape. This flap is recessed 12" into the tarp creating a pair of rain flaps that will wrap around the corners of the load and tuck underneath the flap for a better seal. The flap is double sewn onto the tarp using our rot resistant thread to ensure long life.

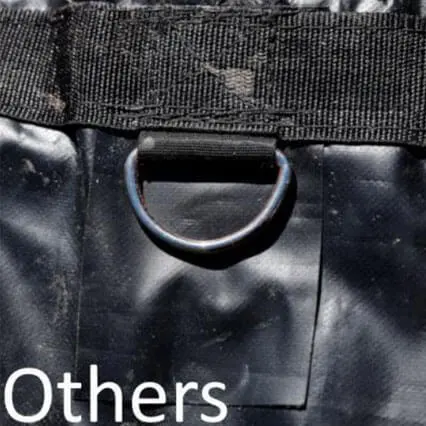

Three rows of D-Rings are installed on both sides as well as the flap. Each ring is triple stitched using our black 277 polyester bonded thread. The outer perimeter of the tarp is folded over creating a two-ply thickness known as the hem where #2 brass rolled rimmed locking spur grommets are installed. This design features 69 D-Rings and 50 grommets for a total of 119 attachment points.

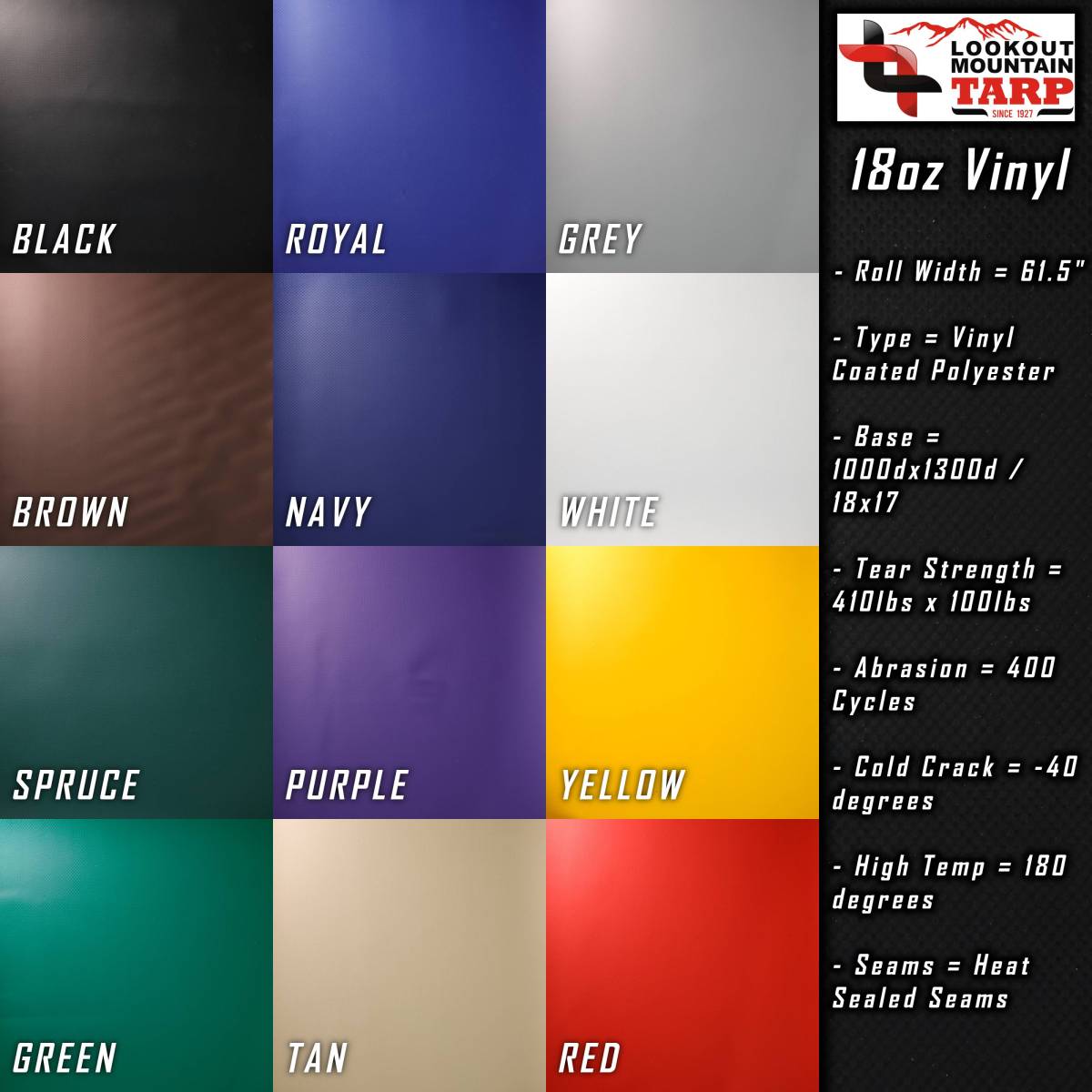

We offer this tarp constructed out of either 14-ounce or 18-ounce vinyl coated polyester fabric. Both fabrics are made by the same manufacturer and share the same 1000Dx1300D construction. The 18-ounce features increased tear strength plus a thicker vinyl coating with a 25% higher abrasion rating. This size tarp weighs 75 LBS in the 14oz or 84 LBS in the 18oz.
Lookout Mountain Tarp keeps this tarp pre-made and ready for immediate pick up or same business day shipping if the black 18oz option is selected. Orders for colors other than black or the 14oz fabric are made to order and will ship within 5 business days.
