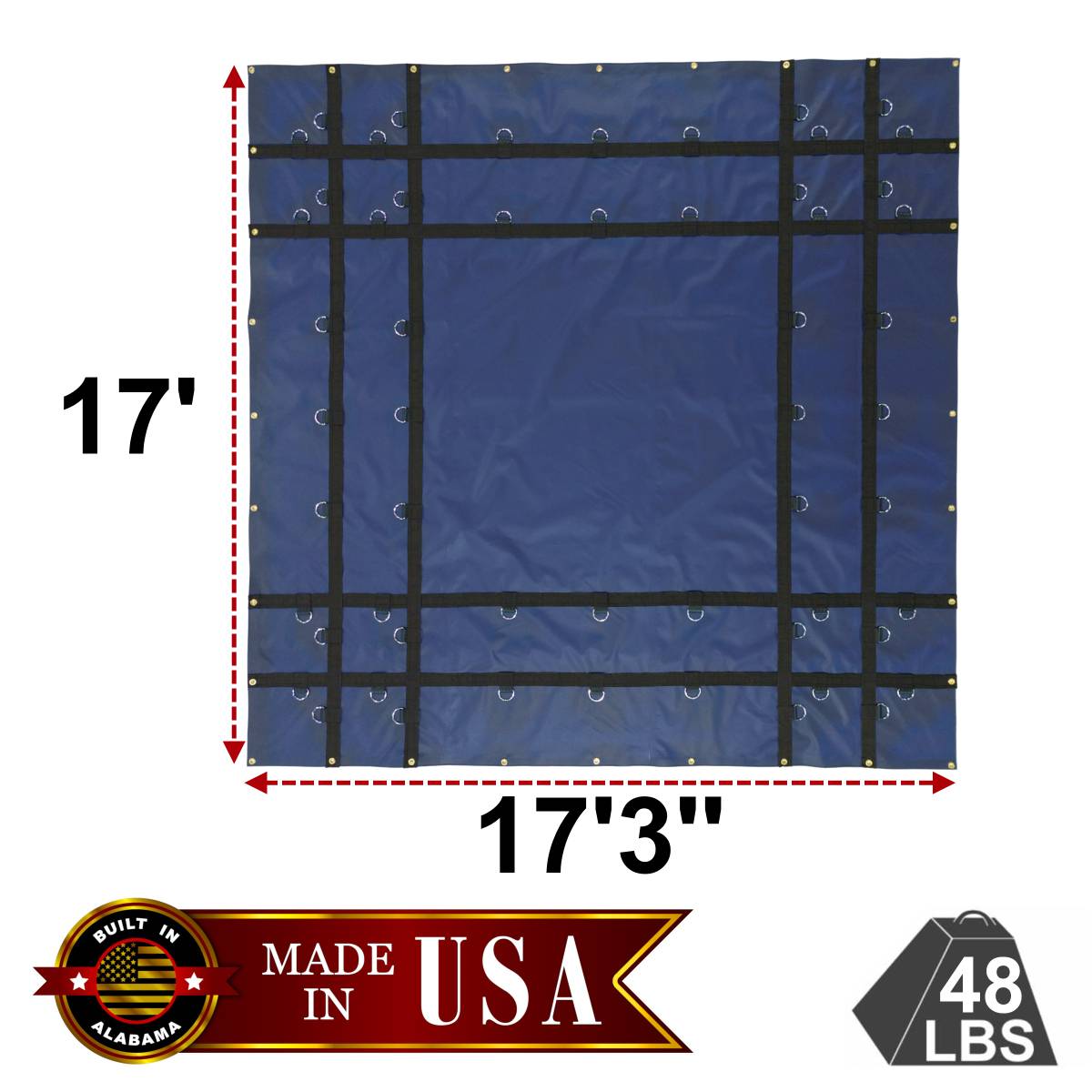

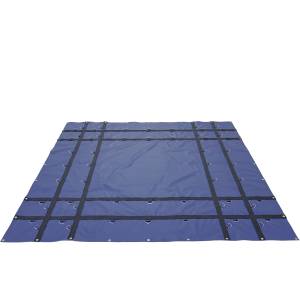

17' x 17' Square Coil Tarp with D-Rings for Flatbed Truck and Trailer

  • 18oz or 14oz vinyl coated polyester fabric
  • 2-ply heat sealed hem
  • Two Rows of webbing reinforced D-rings on all 4 sides

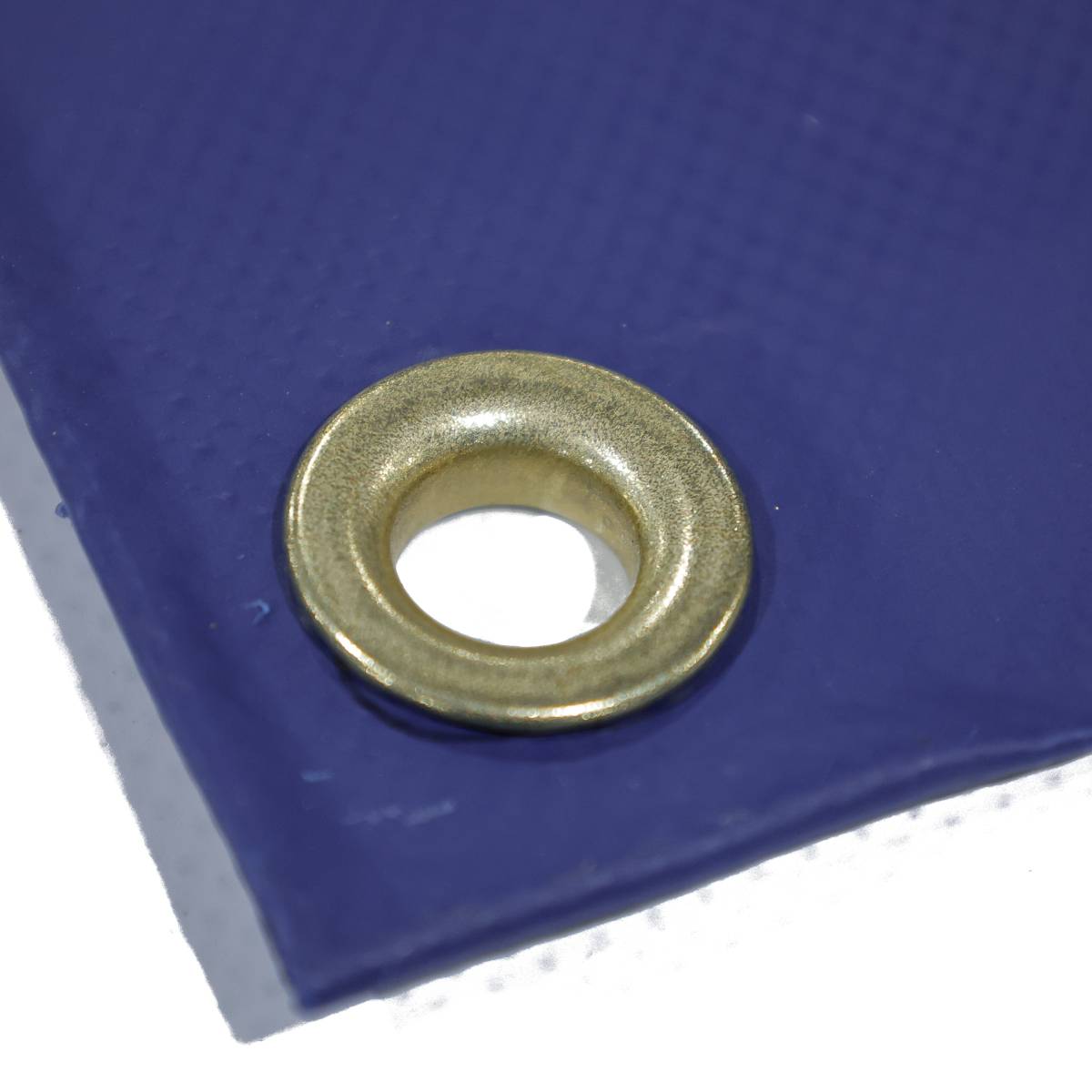

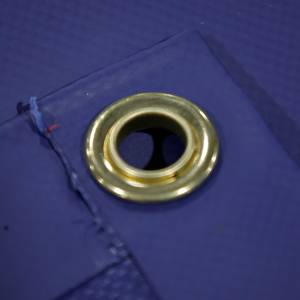

  • #2 brass rolled rimmed locking spur grommets
  • Will cover coils up to 5' around x 6' across
Availability: Black 18oz In Stock - Ships same business day
Pricing: $239.00

Customize Your Item

- Select Color / Size -
 * required

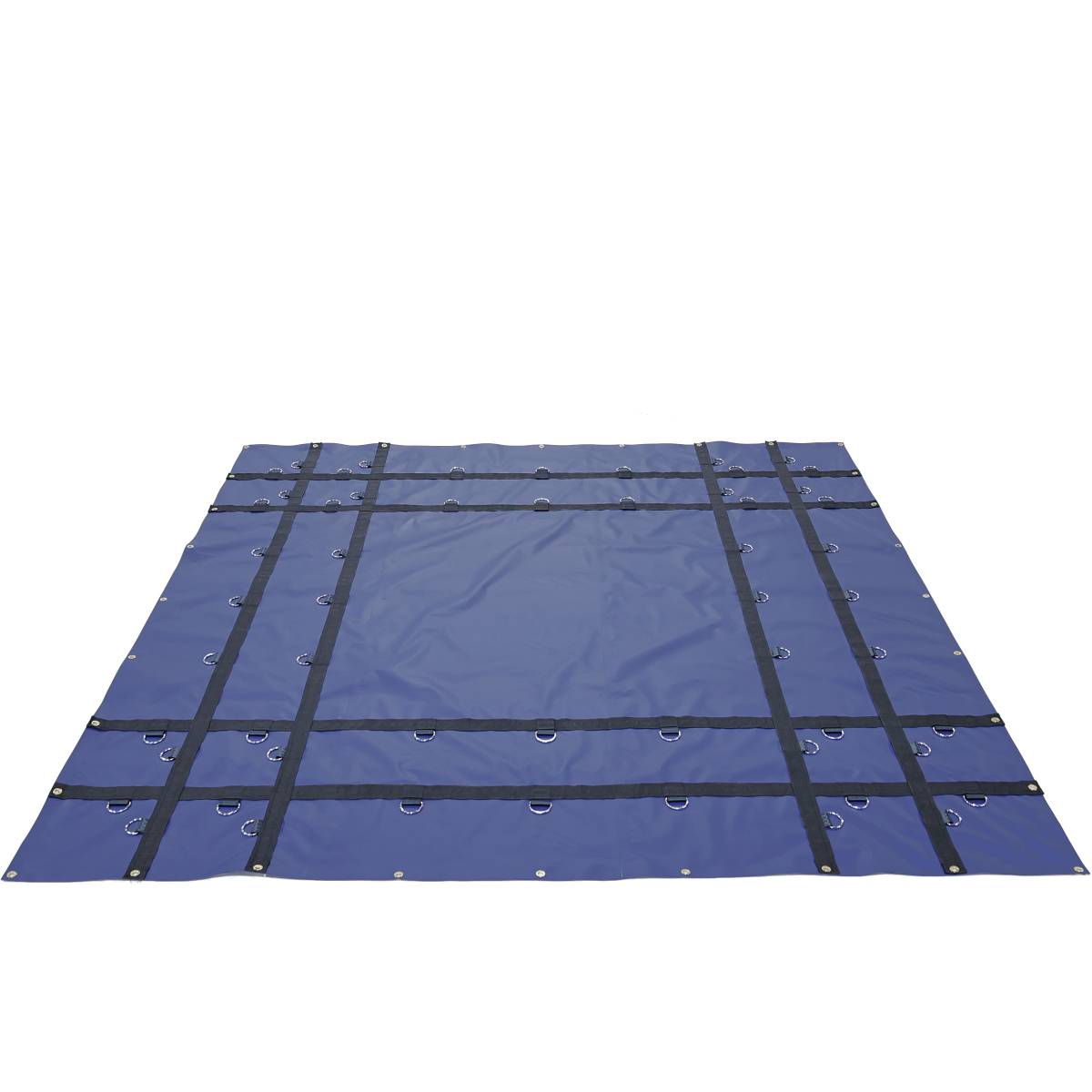

Coil tarps are used to cover loads of rolled steel or aluminum coils that will be hauled on a flatbed truck and trailer. The 17' x 17' size will cover a coil up to 5' tall x 6' across. Coil tarps are loaded with 56 D-rings plus 32 grommets for a total of 88 attachment points making them extremely versatile.

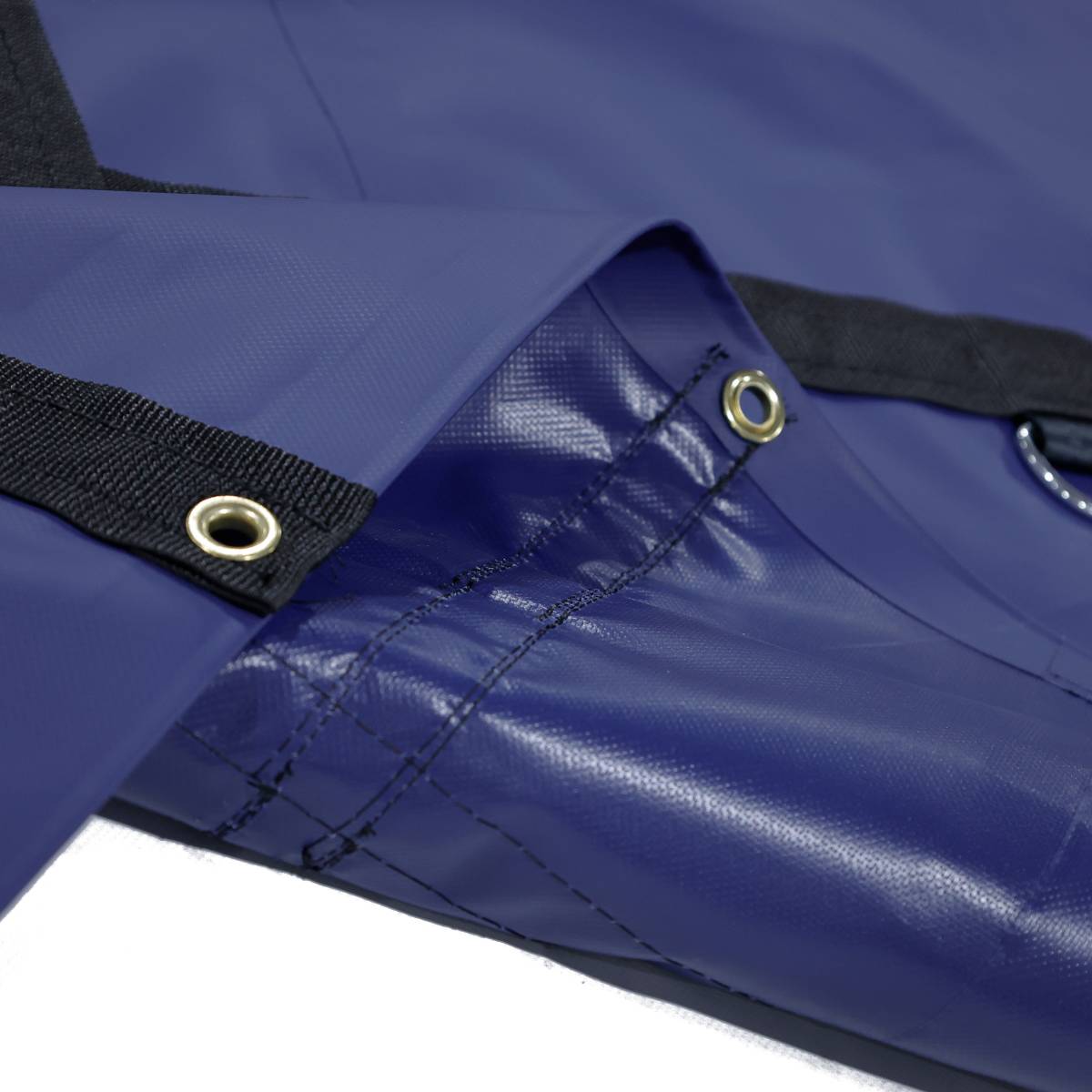

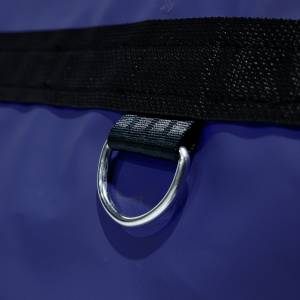

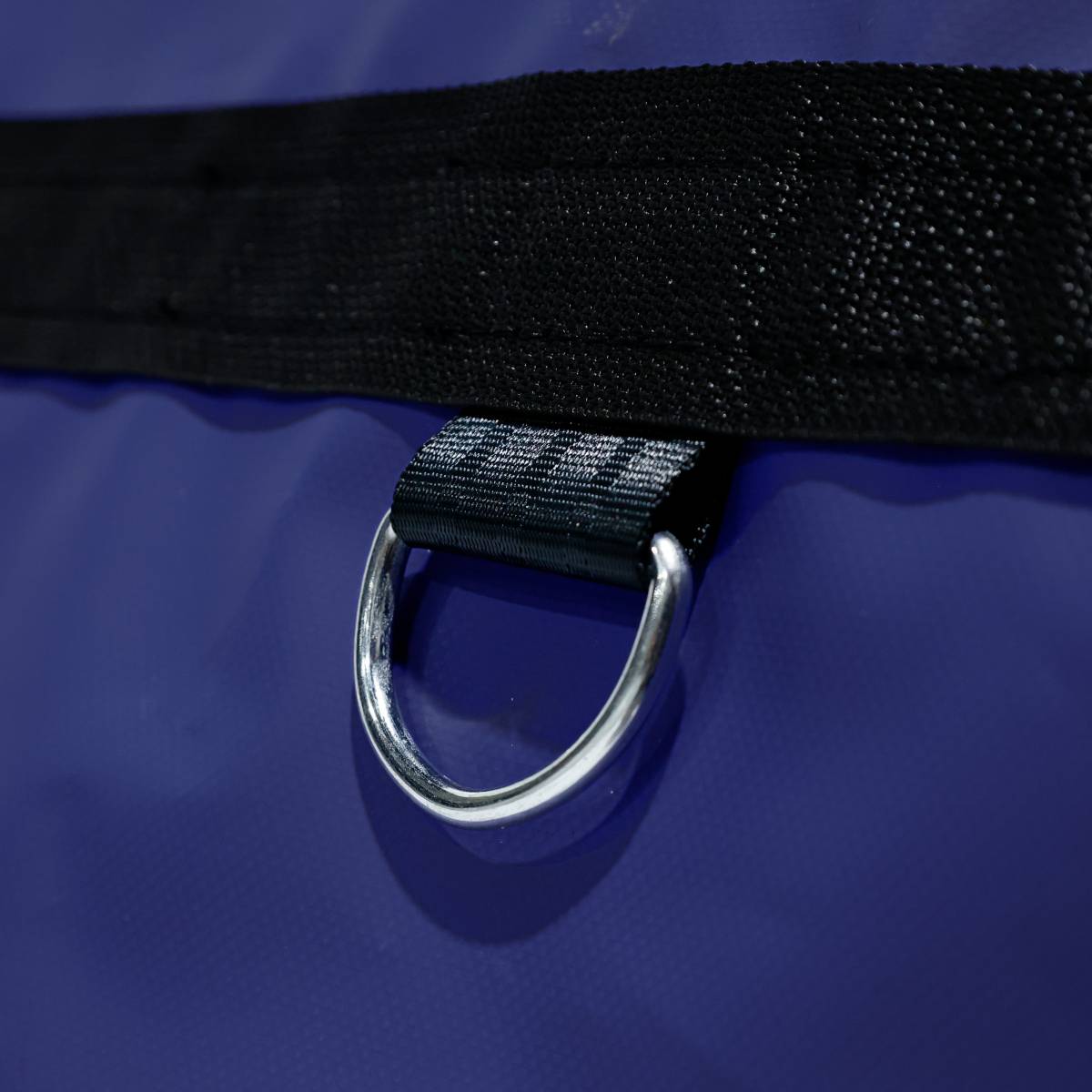

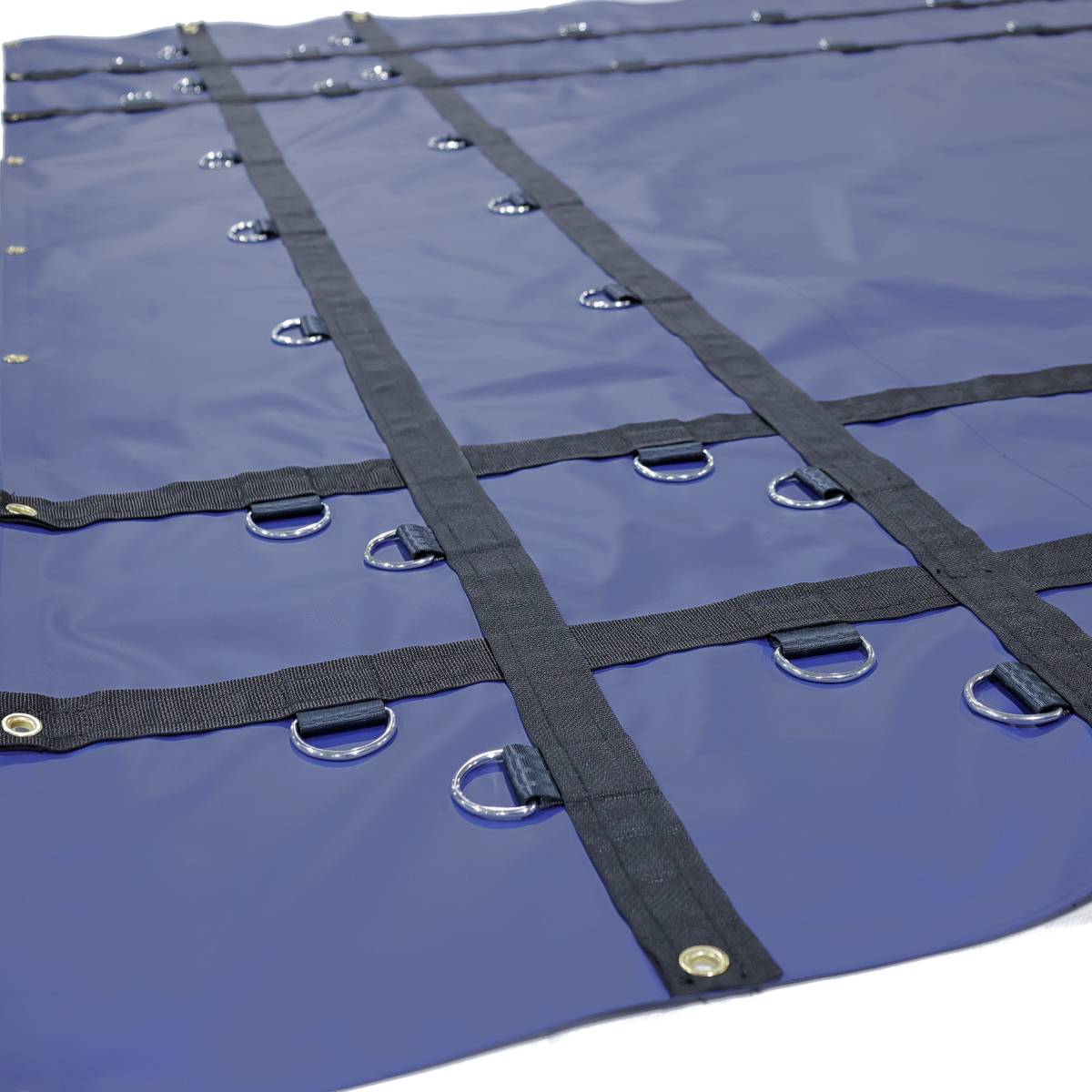

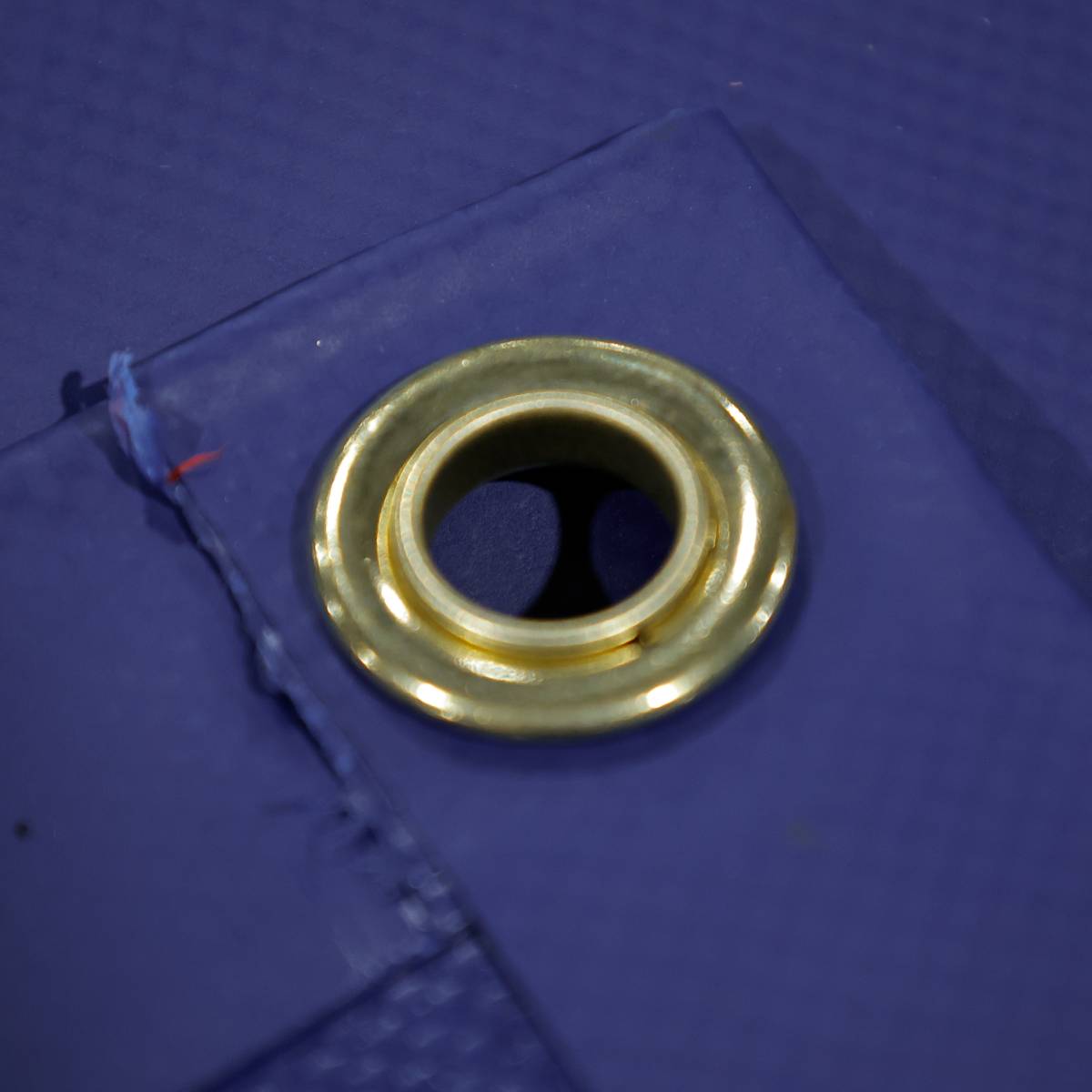

Two rows of D-Rings are installed on both sides as well as both ends of the tarp. These 1.5" dee rings are spaced at 30" apart and are inserted under a row of heavy duty polypro webbing. Each ring is triple stitched using our black 277 polyester thread. The outer perimeter of the tarp is folded over creating a two-ply thickness known as the hem. Brass rolled rimmed #2 grommets are machine punched about every 30" around this hem.

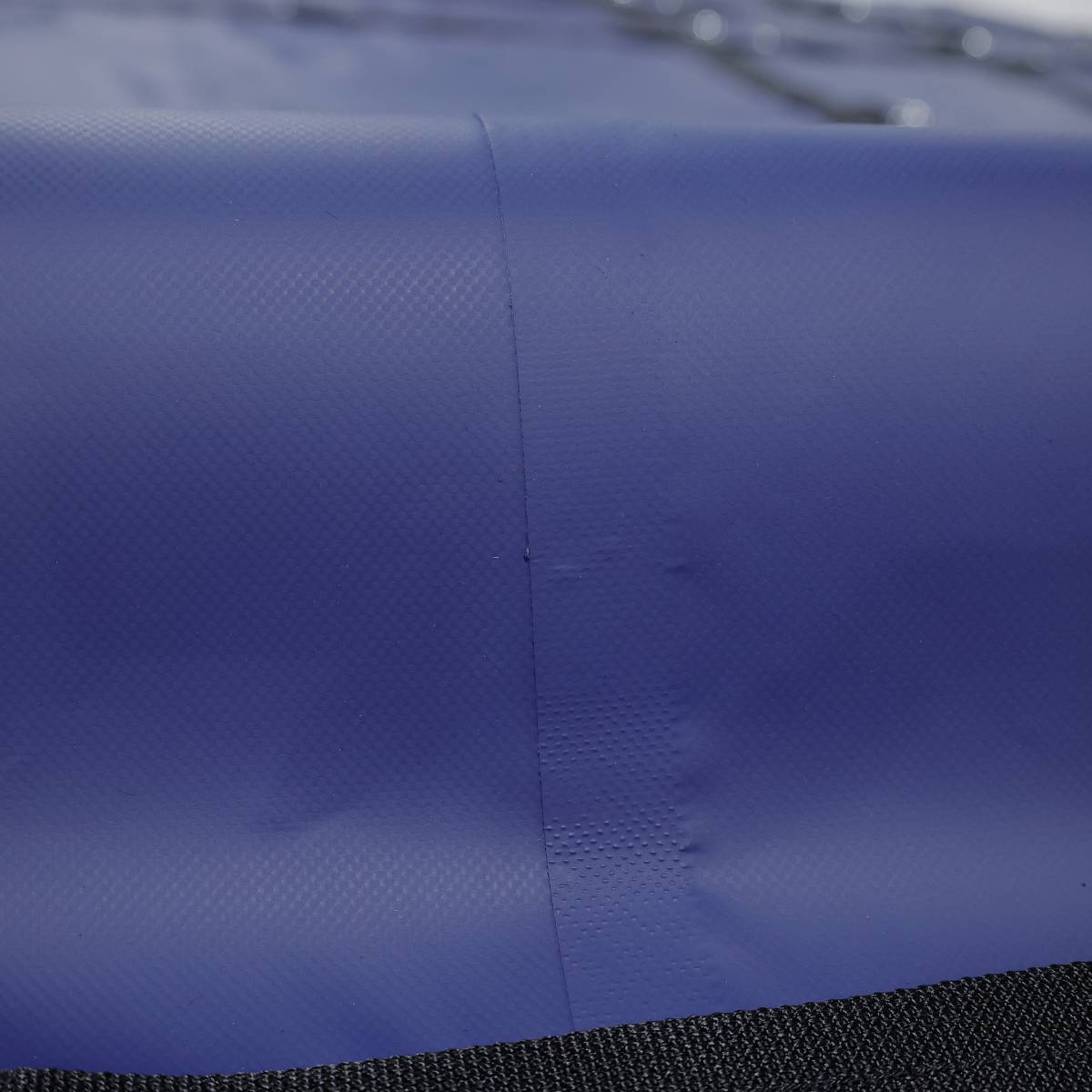

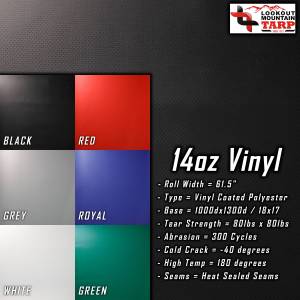

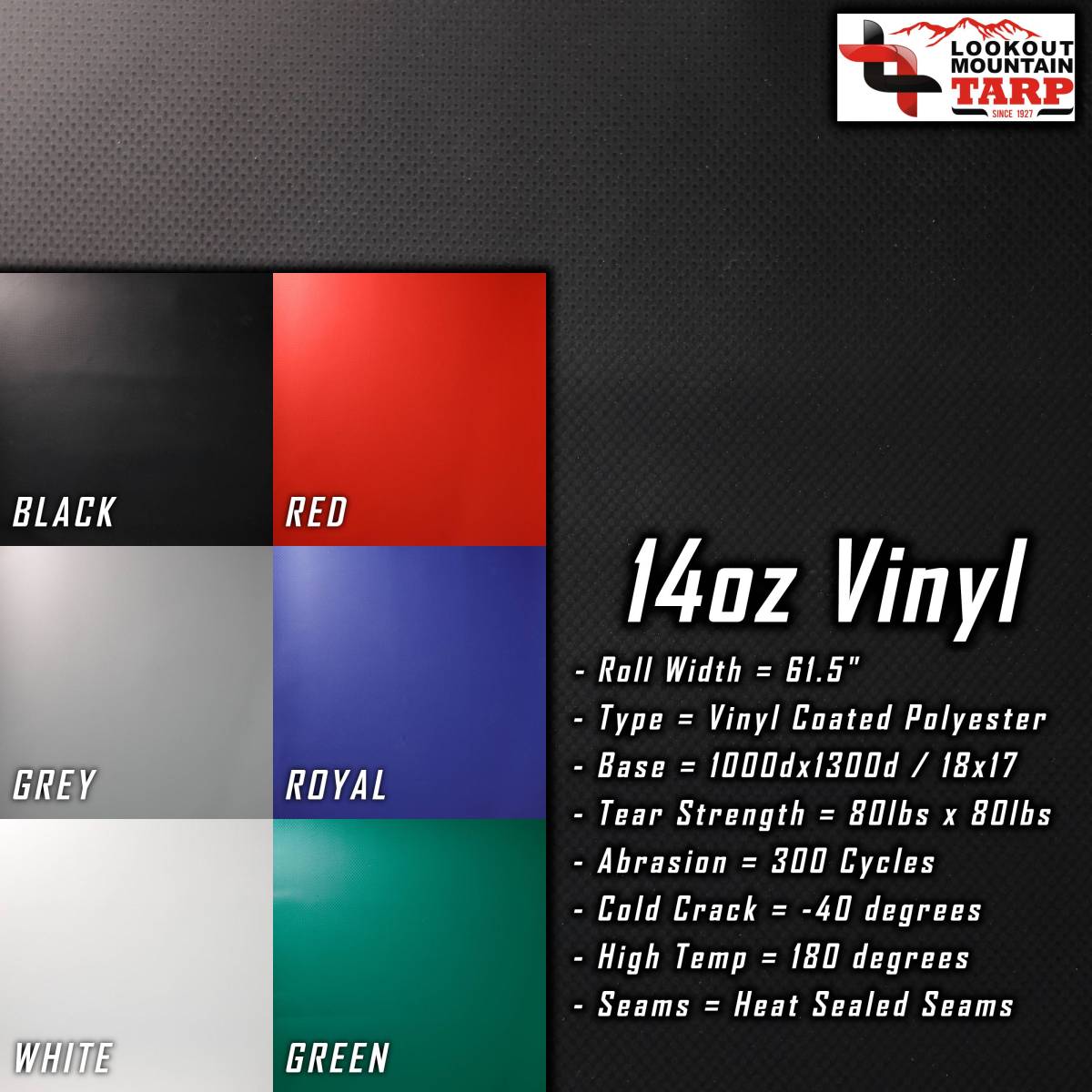

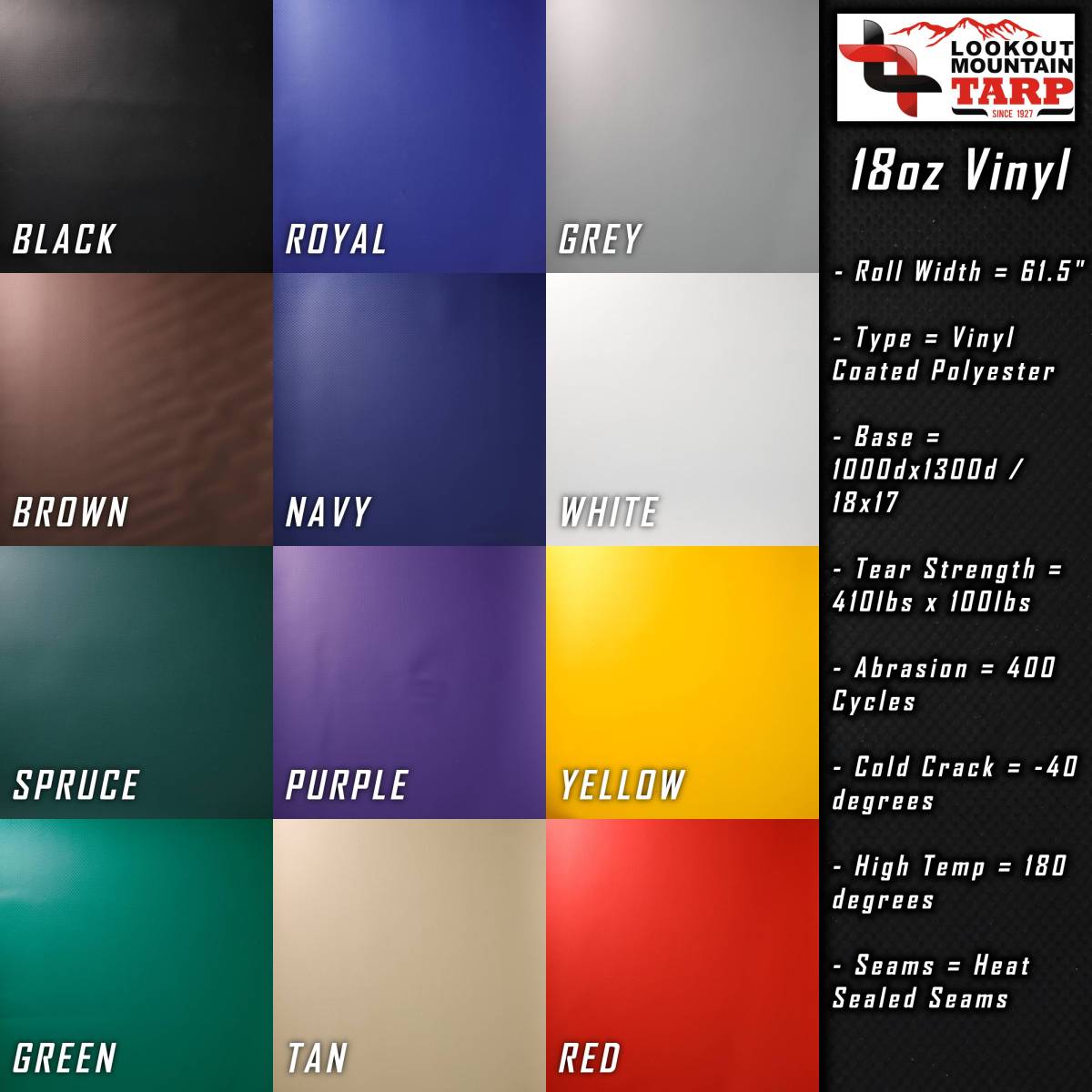

We offer this tarp constructed out of either 14 oz or 18 oz vinyl coated polyester fabric. Both are made by the same manufacturer and share the same 1000Dx1300D construction. Both have the same tear strength, but the 18 oz has a thicker vinyl coating which provides additional abrasion resistance. This size tarp weighs 36 lbs. in the 14oz or 45 lbs. in the 18oz. The 18 oz fabric has proven to be the best choice for this type of tarp.

Lookout Mountain Tarp keeps this tarp premade ready for immediate pick up or same business day shipping if the 18 oz fabric is selected in the black color. If you select a color other than black or the 14 oz lightweight fabric, please allow 5 business days for your tarps to be built.


  • CT17-17
  • CT17-17
  • Lookout Mountain Tarp
  • Black 18oz In Stock - Ships same business day
  • New
