Side Roll Tarp for Belly Bottom Dump Trailer Bed - 18oz Waterproof Vinyl

  • Constructed of 18oz vinyl coated polyester
  • Webbing reinforced hem
  • 4" pocket on drivers side
  • 2" pocket on passenger side
  • 18" strips of webbing reinforce the pocket
Availability: Made to Order - Ships in 5 business days
Pricing: $0.00

Customize Your Item

 * required
 * required
- Total Square Feet -
 * required
- Select Color -
 * required


Roll tarp systems are commonly used on open top trailers with either a belly dump, end dump, or walking floor feature. They can also be found on roll off containers, grain wagon carts, fertilizer spreaders, and tender boxes. Side roll tarps can be manual or electric and use a pair of pipes to secure the tarp as well as open it from side to side. Most roll systems include a metal front nose cap for the tarp to overlap and belly dump trailers typically have one in the rear as well.

Tarp width is the side to side measurement and is a calculation of trailer width, plus any extra arch added by bows, plus many roll systems require a foot of travel to lock in place. 9.5', 10', and 10.5' are the most popular widths. Tarp length is the end to end measurement. Metal front caps typically have a raised tab to indicate where the tarp should start. Measure from this point to this same tab at the rear of the trailer to learn the length needed. In the event your trailer does not have these tabs plan for at least 6" of overlap at each end.

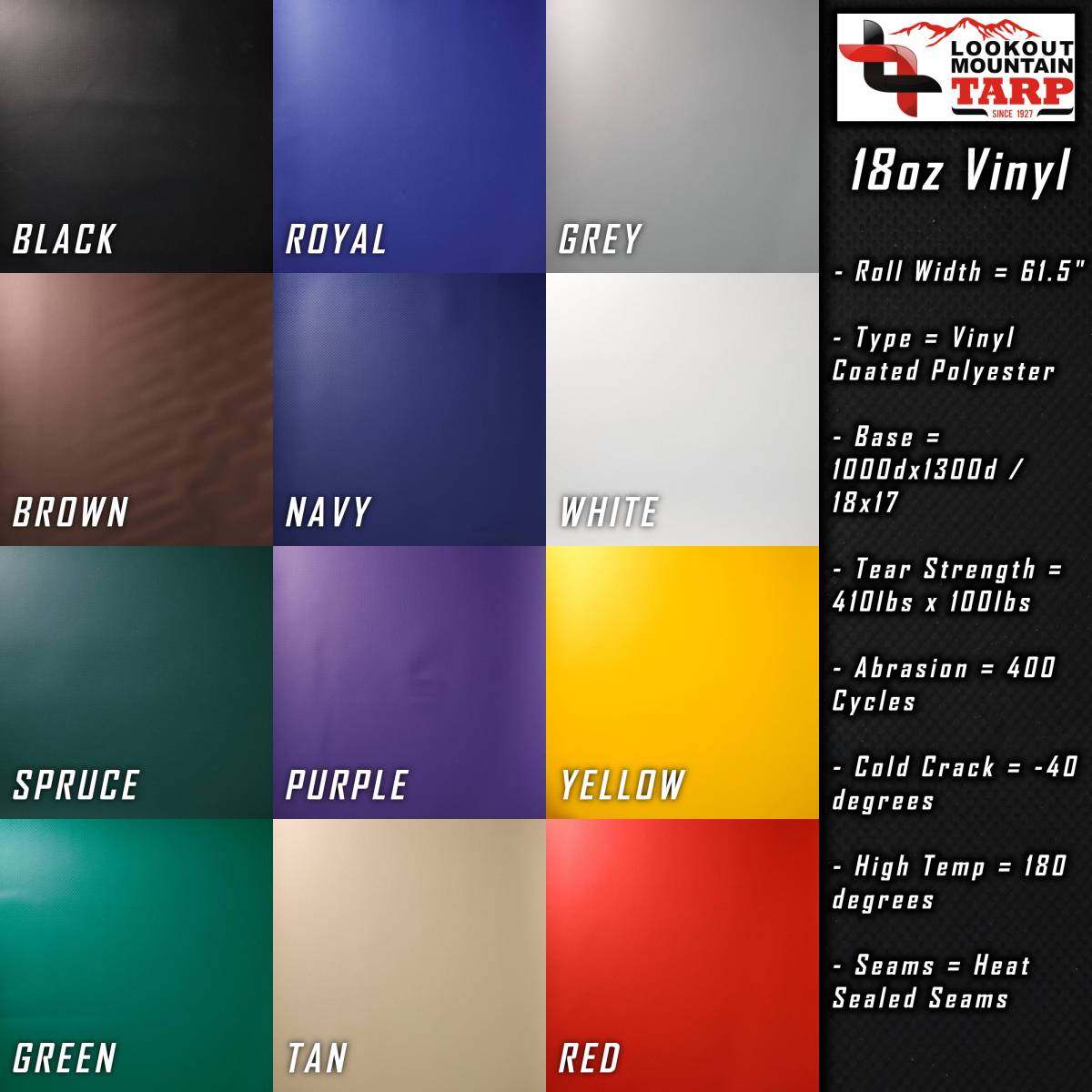

This replacement roll tarp is built using our 18-ounce vinyl coated polyester fabric which is the industry standard for roll tarps. The material is completely waterproof making it a perfect choice for loads like grain that need to stay dry. 18oz fabric is often preferred on manual tarp systems due to its 18% weight savings and increased flexibility. Togethers these characteristics allow the tarp to be rolled across with less effort.

Our standard roll tarp design has a rectangular shape. The leading edge is folded over creating a 2-ply thickness known as the hem. Seat belt style webbing is installed to the top side of this hem boosting its tear strength by 800 LBS. The passenger side of the tarp is folded over to create a pocket large enough for the 1" stationary pipe to slide through. The driver side pocket is large enough to hold a 2" pipe and is reinforced using 18" strips of webbing. We use a heavy duty 277 polyester bonded thread sewn in a double lock stitch that has been tested to outperform welded pockets.
