Custom 4-Sided Box Shaped Tarp Cover with Tail Flap - 18oz Vinyl Coated Polyester

  • Constructed using 18oz waterproof vinyl fabric
  • Corners have double sewn seams
  • 2-Ply webbing reinforced hem
  • Grommets on each side of corner plus every 24"
  • Rear flap is secured using hook and loop fastener
Availability: Made to Order - Ships in 5 business days
Pricing: $0.00

Customize Your Item

 * required
 * required
 * required
- Total Square Feet -
 * required
- Select Color -
 * required
- -
 * required


Box shaped tarps are one of our most popular product lines. They are often ordered in groups of 50+ by brands who include them with a product they manufacture. Our definition of a box tarp is a three-dimensional, fitted product with 90-degree corners that will cover some or all sides. We consider "width" to be the front end / rear end and therefore consider "length" to be the right side / left side. Our box tarps are divided into four styles: 4 sided, 4 sided with a tail flap, 5 sided, and 6 sided. All styles will be constructed out of waterproof 18-ounce vinyl coated polyester fabric. This material has excellent UV resistance and has proven itself for decades in the transportation industry.

Four-sided box tarps with a tail flap are often used on projects that require five sides of protection but are over 60" tall. Five sided tarps can be difficult to install over taller objects so instead of sewing the rear corners closed, we use hook and loop fastener. As an added bonus, the rear flap can be opened for easy entry without removing the entire tarp.

Box tarps are a custom-made product that will be built to match the specs of your order. When purchasing a 4-sided box tarp with tail flap we recommend selecting a size that matches the height of what is being covered. For the width and length, we suggest adding an extra 2" to provide room for slipping the tarp into position.

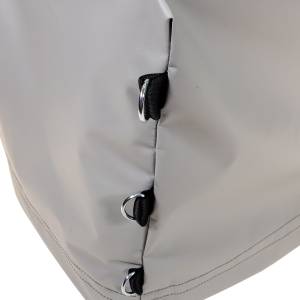

The outer perimeter will feature a two-ply hem that is reinforced with heavy duty polypro webbing. Brass spur grommets will be machine punched on each side of the corners as well as about every 24" around the hem. Corner seams are double sewn for increased durability, and three D-Rings can be inserted into these seams ($30 extra). Additional rows of D-Ring attachments can be added above the hem ($0.50 per foot). Many buyers select to include our clear Work Order pocket to provide easy access to paperwork. We also suggest replacing the webbing hem with a drawstring or a nylon shock cord ($0.08 per foot) for added protection. Please add an extra 2"-3" of height if selecting this option.


  • BT4F
  • BT4F
  • Lookout Mountain Tarp
  • Made to Order - Ships in 5 business days
  • New
